rougail-tutorials/README.md

• Summary
• [tutorial v1.1_160] Namespace (diff)

[tutorial v1.1_161] New "FoxyProxy" namespace

Read the tutorial "New "FoxyProxy" namespace" in the documentation

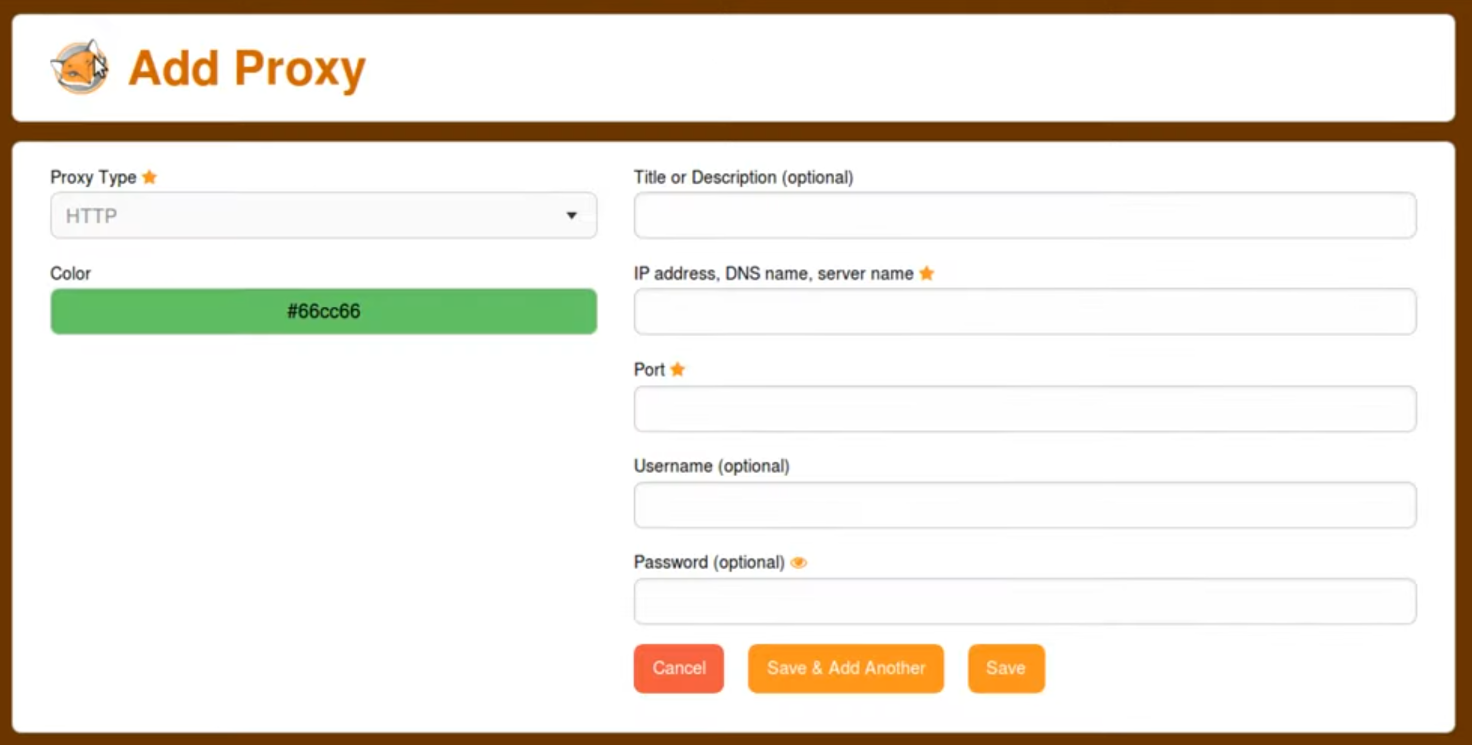

Screenshot

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_161

Structure

.
├── firefox
│   ├── 00-proxy.yml
│   ├── 10-manual.yml
│   ├── 20-manual.yml
│   ├── 30-auto.yml
│   ├── 40-no_proxy.yml
│   ├── 50-prompt_authentication.yml
│   ├── 55-proxy_dns_socks5.yml
│   └── 60-dns_over_https.yml
├── foxyproxy
│   └── 00-foxyproxy.yml
└── types
    └── proxy
        └── 00_type.yml

Contents of the foxyproxy/00-foxyproxy.yml file

%YAML 1.2
---
version: 1.1
...

---

Let's generate the documentation

rougail -m firefox/ -s Firefox -xn FoxyProxy -xd 0 foxyproxy/ --types types/proxy --modes_level basic standard advanced -o doc

Firefox

Note

This family is a namespace.
Path: firefox
basic

Variable	Description
firefox.proxy_mode choice standard mandatory	Configure Proxy Access to the Internet. Choices: • No proxy ← (default) • Auto-detect proxy settings for this network • Use system proxy settings • Manual proxy configuration • Automatic proxy configuration URL

Manual proxy configuration

Note

Path: firefox.manual
basic disabled
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Manual proxy configuration"

HTTP Proxy

Note

Path: firefox.manual.http_proxy
basic

Variable	Description
firefox.manual.http_proxy.address domainname basic mandatory	Proxy address. Validators: • type domainname • the domain name can be an IP
firefox.manual.http_proxy.port port standard mandatory	Proxy port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: 8080

Variable	Description
firefox.manual.use_for_https boolean standard mandatory	Also use this proxy for HTTPS. Default: true

HTTPS Proxy

Note

Path: firefox.manual.https_proxy
standard hidden
Hidden: when the variable "Also use this proxy for HTTPS" has the value "true"

Variable	Description
firefox.manual.https_proxy.address domainname standard mandatory	Proxy address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "Proxy address"
firefox.manual.https_proxy.port port standard mandatory	Proxy port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "Proxy port"

SOCKS Proxy

Note

Path: firefox.manual.socks_proxy
standard

Variable	Description
firefox.manual.socks_proxy.address domainname standard mandatory	Proxy address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "Proxy address"
firefox.manual.socks_proxy.port port standard mandatory	Proxy port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "Proxy port"
firefox.manual.socks_proxy.version choice standard mandatory	SOCKS host version used by proxy. Choices: • v4 • v5 ← (default)

Variable	Description
firefox.auto web address basic mandatory disabled	Automatic proxy configuration URL. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • type domainname • the domain name can be a hostname Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Automatic proxy configuration URL"
firefox.no_proxy domainname multiple standard disabled unique	Address for which proxy will be desactivated. Connections to localhost, 127.0.0.1/8 and ::1 are never proxied. Validators: • type domainname • the domain name can starts by a dot • the domain name can be a hostname • the domain name can be an IP • the domain name can be network in CIDR format Examples: • .mozilla.org • .net.nz • 192.168.1.0/24 Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
firefox.prompt_authentication boolean standard mandatory disabled	Prompt for authentication if password is saved. Default: true Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
firefox.proxy_dns_socks5 boolean advanced mandatory disabled	Use proxy DNS when using SOCKS v5. Default: false Disabled: if "Configure Proxy Access to the Internet" is not "Manual proxy configuration" or "SOCKS host version used by proxy" is "v4"

DNS over HTTPS

Note

Path: firefox.dns_over_https
basic

Variable	Description
firefox.dns_over_https.enable_dns_over_https boolean standard mandatory	Enable DNS over HTTPS. Default: false
firefox.dns_over_https.provider choice standard mandatory disabled	Use Provider. Choices: • Cloudflare ← (default) • NextDNS • Custom Disabled: when the variable "Enable DNS over HTTPS" has the value "false"
firefox.dns_over_https.custom_dns_url web address basic mandatory disabled	Custom DNS URL. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • type domainname • the domain name can be a hostname • must starts with 'https://' only Disabled: if "Use Provider" is not "Custom"

---

User datas

Example 1

config/01/config.yml

---

---

Output

rougail -m firefox/ -s Firefox -xn FoxyProxy -xd 0 foxyproxy/ --types types/proxy --modes_level basic standard advanced -u yaml -yf config/01/config.yml

Note

Caption:

• Variable
• Default value

Variables:

• 📂 firefox (Firefox)
  • 📓 proxy_mode (Configure Proxy Access to the Internet): No proxy
  • 📂 dns_over_https (DNS over HTTPS)
    • 📓 enable_dns_over_https (Enable DNS over HTTPS): false

---
