• [tutorial v1.1_080] A conditional disabled variable with type web_address (diff)

[tutorial v1.1_090] A conditional disabled variable with type domainname and parameters

View the diff

Read the documentation

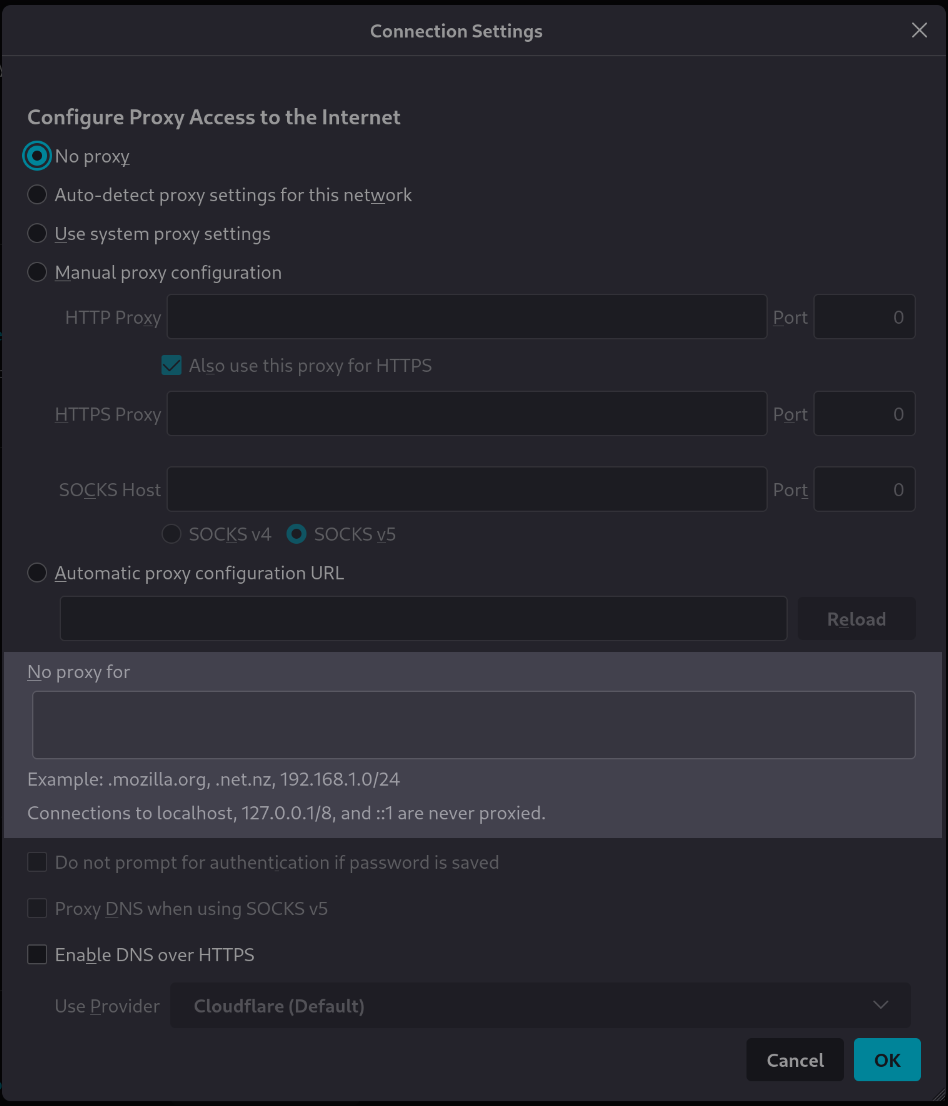

Screenshot

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_090

Structure

.
└── firefox
    ├── 00-proxy.yml
    ├── 10-manual.yml
    ├── 20-manual.yml
    ├── 30-auto.yml
    └── 40-no_proxy.yml

Contents of the firefox/40-no_proxy.yml file

%YAML 1.2
---
version: 1.1

no_proxy:
  description: Address for which proxy will be desactivated
  type: domainname
  params:
    allow_ip: true
    allow_cidr_network: true
    allow_without_dot: true
    allow_startswith_dot: true
  disabled:
    variable: _.proxy_mode
    when: No proxy
...

Let's generate the documentation

rougail -m firefox/ -o doc

Variable	Description
proxy_mode choice mandatory	Configure Proxy Access to the Internet. Choices: • No proxy ← (default) • Auto-detect proxy settings for this network • Use system proxy settings • Manual proxy configuration • Automatic proxy configuration URL

Manual proxy configuration

🛈 Informations

Path: manual
disabled
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Manual proxy configuration"

HTTP Proxy

🛈 Informations

Path: manual.http_proxy

Variable	Description
manual.http_proxy.address domainname mandatory	HTTP address. Validators: • type domainname • the domain name can be an IP
manual.http_proxy.port port mandatory	HTTP Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: 8080

Variable	Description
manual.use_for_https boolean mandatory	Also use this proxy for HTTPS. Default: true

HTTPS Proxy or SOCKS Proxy

🛈 Informations

This family builds families dynamically.
Path:

• manual.https_proxy
• manual.socks_proxy
  hidden
  Hidden: in HTTPS case if "Also use this proxy for HTTPS" is set to "true"
  Identifiers:
• HTTPS
• SOCKS

Variable	Description
manual.https_proxy.address manual.socks_proxy.address domainname mandatory	HTTPS or SOCKS address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "HTTP address"
manual.https_proxy.port manual.socks_proxy.port port mandatory	HTTPS or SOCKS port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "HTTP Port"
manual.https_proxy.version manual.socks_proxy.version choice mandatory disabled	SOCKS host version used by proxy. Choices: • v4 • v5 ← (default) Disabled: when the identifier is "HTTPS"

Variable	Description
auto web address mandatory disabled	Automatic proxy configuration URL. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • type domainname • the domain name can be a hostname Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Automatic proxy configuration URL"
no_proxy domainname mandatory disabled	Address for which proxy will be desactivated. Validators: • type domainname • the domain name can starts by a dot • the domain name can be a hostname • the domain name can be an IP • the domain name can be network in CIDR format Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"

Let's generate the changelog

rougail -m firefox/ -o doc --doc.contents changelog

New variable

Variable	Description
no_proxy domainname mandatory disabled	Address for which proxy will be desactivated. Validators: • type domainname • the domain name can starts by a dot • the domain name can be a hostname • the domain name can be an IP • the domain name can be network in CIDR format Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"

User datas

Example 1

config/01/config.yml

---

Output

rougail -m firefox/ -u yaml -yf config/01/config.yml

╭──────────────────── Caption ─────────────────────╮
│ Undocumented but modified variable Default value │
╰──────────────────────────────────────────────────╯
Variables:
┗━━ 📓 Configure Proxy Access to the Internet: No proxy

Example 2

config/02/config.yml

---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat
no_proxy: 192.168.1.0/24

Output

rougail -m firefox/ -u yaml -yf config/02/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Automatic proxy configuration URL
┃   ◀ loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
┣━━ 📓 Automatic proxy configuration URL: https://auto.proxy.net/wpad.dat ◀
┃   loaded from the YAML file "config/02/config.yml"
┗━━ 📓 Address for which proxy will be desactivated: 192.168.1.0/24 ◀ loaded
    from the YAML file "config/02/config.yml"
