• [tutorial v1.1_096] A boolean variable (diff)

[tutorial v1.1_097)] A Jinja conditional disabled boolean variable

View the diff

Read the documentation

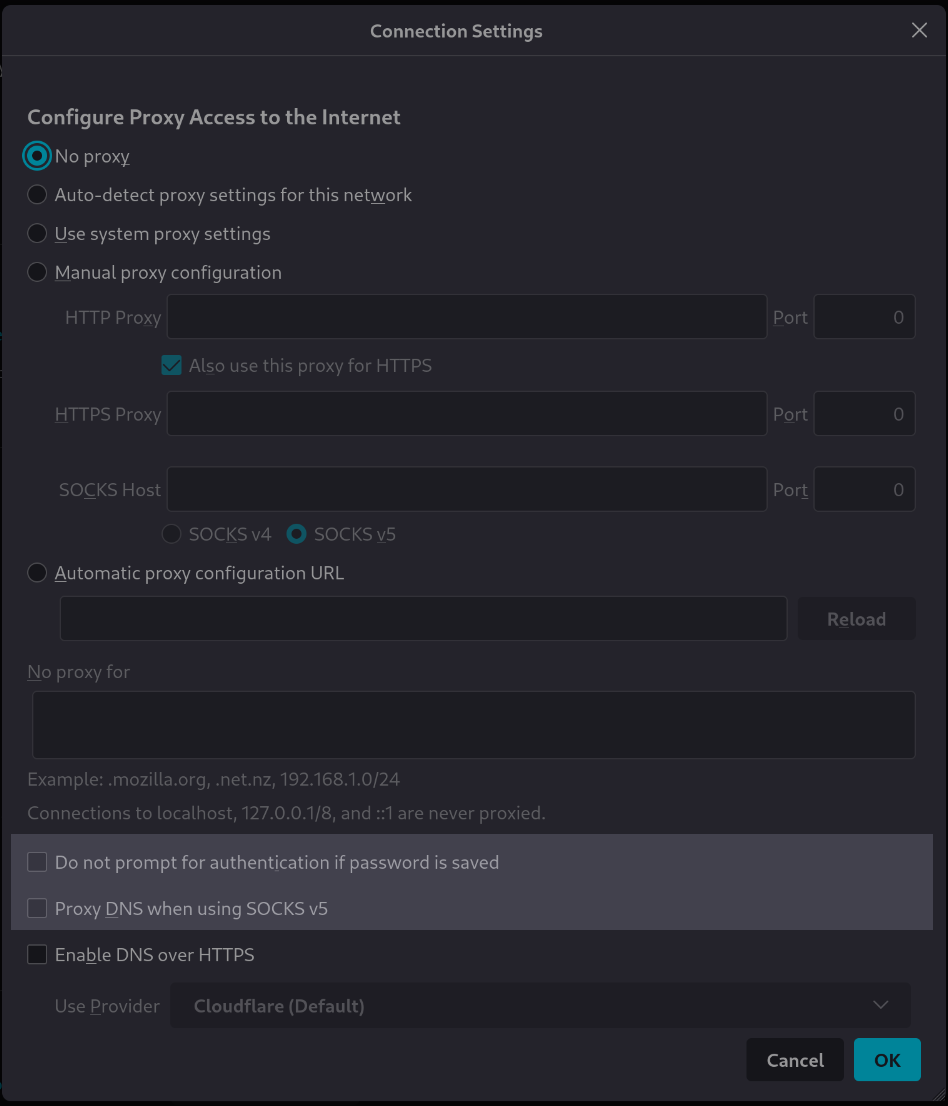

Screenshot

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_097

Structure

.
└── firefox
    ├── 00-proxy.yml
    ├── 10-manual.yml
    ├── 20-manual.yml
    ├── 30-auto.yml
    ├── 40-no_proxy.yml
    ├── 50-prompt_authentication.yml
    └── 55-proxy_dns_socks5.yml

Contents of the firefox/55-proxy_dns_socks5.yml file

%YAML 1.2
---
version: 1.1

proxy_dns_socks5:
  description: Use proxy DNS when using SOCKS v5
  default: false
  disabled:
    jinja: |-
      {% if _.manual.socks_proxy.version is propertyerror %}
        the proxy mode is not manual
      {% elif _.manual.socks_proxy.version == 'v4' %}
        socks version is v4
      {% endif %}
    description: |-
      if "firefox.proxy_mode" is not "Manual proxy configuration"
      or "firefox.manual.socks_proxy.version" is "v4"
...

Let's generate the documentation

rougail -m firefox/ -o doc

Variable	Description
proxy_mode choice mandatory	Configure Proxy Access to the Internet. Choices: - No proxy ← (default) - Auto-detect proxy settings for this network - Use system proxy settings - Manual proxy configuration - Automatic proxy configuration URL

Manual proxy configuration

manual

disabled

Disabled: when the variable "proxy_mode" hasn't the value "Manual proxy configuration"

HTTP Proxy

manual.http_proxy

Variable	Description
manual.http_proxy.address domainname mandatory	HTTP address. Validator: the domain name can be an IP
manual.http_proxy.port port mandatory	HTTP Port. Validators: - well-known ports (1 to 1023) are allowed - registred ports (1024 to 49151) are allowed - private ports (greater than 49152) are allowed Default: 8080

Variable	Description
manual.use_for_https boolean mandatory	Also use this proxy for HTTPS. Default: true

HTTPS Proxy or SOCKS Proxy

This family builds families dynamically

manual.https_proxy
manual.socks_proxy

hidden

Hidden: in HTTPS case if "_.use_for_https" is set to "true"

Identifiers:
- HTTPS
- SOCKS

Variable	Description
manual.https_proxy.address manual.socks_proxy.address domainname mandatory	HTTPS or SOCKS address. Validator: the domain name can be an IP Default: the value of the variable "manual.http_proxy.address"
manual.https_proxy.port manual.socks_proxy.port port mandatory	HTTPS or SOCKS port. Validators: - well-known ports (1 to 1023) are allowed - registred ports (1024 to 49151) are allowed - private ports (greater than 49152) are allowed Default: the value of the variable "manual.http_proxy.port"
manual.https_proxy.version manual.socks_proxy.version choice mandatory disabled	SOCKS host version used by proxy. Choices: - v4 - v5 ← (default) Disabled: when the identifier is "HTTPS"

Variable	Description
auto web_address mandatory disabled	Automatic proxy configuration URL. Validator: the domain name in web address can be only a hostname Disabled: when the variable "proxy_mode" hasn't the value "Automatic proxy configuration URL"
no_proxy domainname disabled unique multiple	Address for which proxy will be desactivated. Connections to localhost, 127.0.0.1/8 and ::1 are never proxied. Validators: - the domain name can starts by a dot - the domain name can be a hostname - the domain name can be an IP - the domain name can be network in CIDR format Examples: - .mozilla.org - .net.nz - 192.168.1.0/24 Disabled: when the variable "proxy_mode" has the value "No proxy"
prompt_authentication boolean mandatory disabled	Prompt for authentication if password is saved. Default: true Disabled: when the variable "proxy_mode" has the value "No proxy"
proxy_dns_socks5 boolean mandatory disabled	Use proxy DNS when using SOCKS v5. Default: false Disabled: if "firefox.proxy_mode" is not "Manual proxy configuration"
or "firefox.manual.socks_proxy.version" is "v4"

Let's generate the changelog

rougail -m firefox/ -o doc --doc.contents changelog

Modified variable

Variable	Description
proxy_dns_socks5 boolean mandatory disabled	Use proxy DNS when using SOCKS v5. Default: false Disabled: if "firefox.proxy_mode" is not "Manual proxy configuration"
or "firefox.manual.socks_proxy.version" is "v4"

User datas

Example 1

config/01/config.yml

---

Output

rougail -m firefox/ -u yaml -yf config/01/config.yml

╭─────── Caption ────────╮
│ Variable Default value │
╰────────────────────────╯
Variables:
┗━━ 📓 Configure Proxy Access to the Internet: No proxy

Example 2

config/02/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net

Output

rougail -m firefox/ -u yaml -yf config/02/config.yml

╭────────────── Caption ───────────────╮
│ Variable Default value               │
│          Modified value              │
│          (⏳ Original default value) │
╰──────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀ loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file "config/02/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v5
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: false

Example 3

config/03/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
proxy_dns_socks5: true

Output

rougail -m firefox/ -u yaml -yf config/03/config.yml

╭────────────── Caption ───────────────╮
│ Variable Default value               │
│          Modified value              │
│          (⏳ Original default value) │
╰──────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀ loaded from the YAML file "config/03/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file "config/03/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v5
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: true ◀ loaded from the YAML file "config/03/config.yml" (⏳ false)

Example 4

config/04/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
  socks_proxy:
    version: v4

Output

rougail -m firefox/ -u yaml -yf config/04/config.yml

╭────────────── Caption ───────────────╮
│ Variable Default value               │
│          Modified value              │
│          (⏳ Original default value) │
╰──────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀ loaded from the YAML file "config/04/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file "config/04/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v4 ◀ loaded from the YAML file "config/04/config.yml" (⏳ v5)
┣━━ 📓 Address for which proxy will be desactivated:
┗━━ 📓 Prompt for authentication if password is saved: true
