[tutorial v1.1_096] A boolean variable

View the diff

Read the documentation

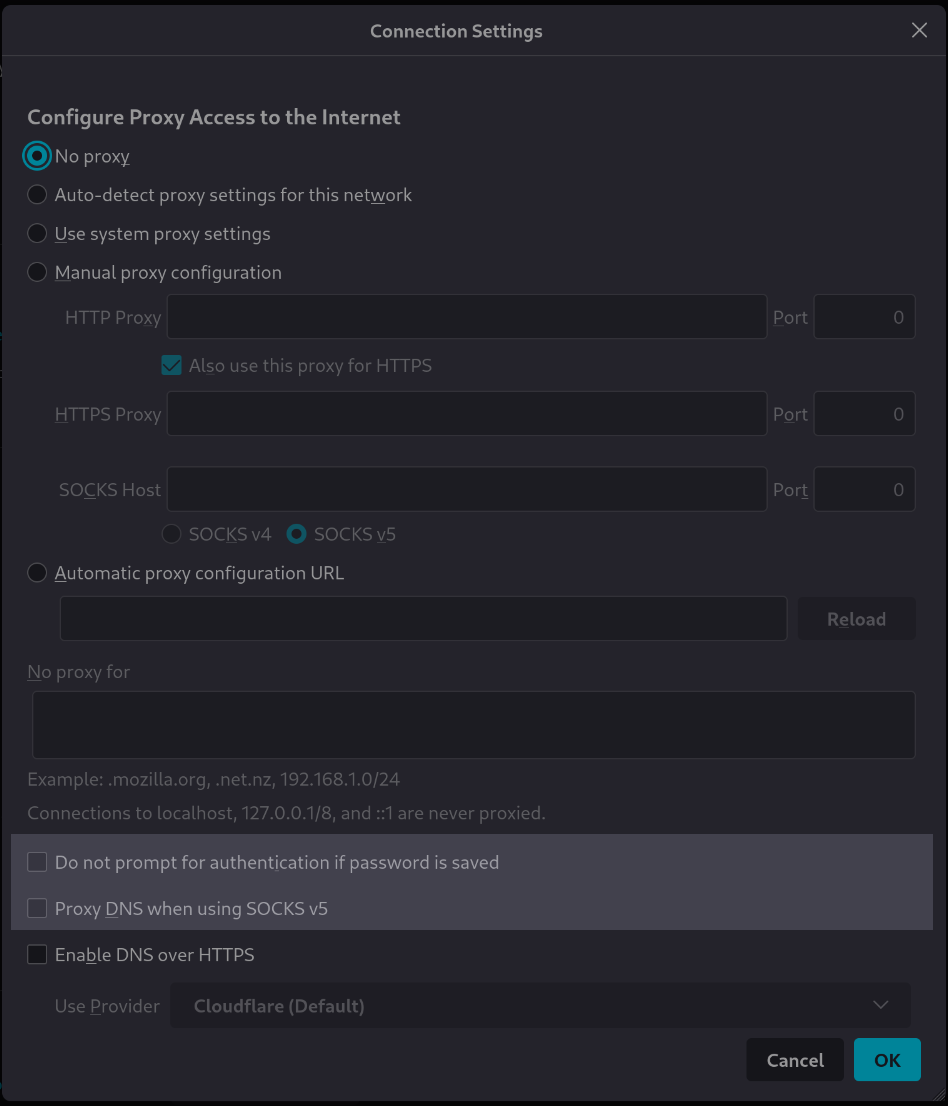

Screenshot

Firefox Proxy setting

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_096

Structure

.
└── firefox
    ├── 00-proxy.yml
    ├── 10-manual.yml
    ├── 20-manual.yml
    ├── 30-auto.yml
    ├── 40-no_proxy.yml
    ├── 50-prompt_authentication.yml
    └── 55-proxy_dns_socks5.yml


Contents of the firefox/55-proxy_dns_socks5.yml file

%YAML 1.2
---
version: 1.1

proxy_dns_socks5: false  # Use proxy DNS when using SOCKS v5
...

Let's generate the documentation

rougail -m firefox/ -o doc
Variable Description
proxy_mode
choice mandatory		 Configure Proxy Access to the Internet.
Choices:
• No proxy ← (default)
• Auto-detect proxy settings for this network
• Use system proxy settings
• Manual proxy configuration
• Automatic proxy configuration URL

Manual proxy configuration

🛈 Informations

Path: manual
disabled
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Manual proxy configuration"

HTTP Proxy

🛈 Informations

Path: manual.http_proxy

Variable Description
manual.http_proxy.address
domainname mandatory		 HTTP address.
Validators:
• type domainname
• the domain name can be an IP
manual.http_proxy.port
port mandatory		 HTTP Port.
Validators:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• private ports (greater than 49152) are allowed
Default: 8080
Variable Description
manual.use_for_https
boolean mandatory		 Also use this proxy for HTTPS.
Default: true
HTTPS Proxy or SOCKS Proxy

🛈 Informations

This family builds families dynamically.
Path:

  • manual.https_proxy
  • manual.socks_proxy
    hidden
    Hidden: in HTTPS case if "Also use this proxy for HTTPS" is set to "true"
    Identifiers:
  • HTTPS
  • SOCKS
Variable Description
manual.https_proxy.address
manual.socks_proxy.address
domainname mandatory		 HTTPS or SOCKS address.
Validators:
• type domainname
• the domain name can be an IP
Default: the value of the variable "HTTP address"
manual.https_proxy.port
manual.socks_proxy.port
port mandatory		 HTTPS or SOCKS port.
Validators:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• private ports (greater than 49152) are allowed
Default: the value of the variable "HTTP Port"
manual.https_proxy.version
manual.socks_proxy.version
choice mandatory disabled		 SOCKS host version used by proxy.
Choices:
• v4
• v5 ← (default)
Disabled: when the identifier is "HTTPS"
Variable Description
auto
web address mandatory disabled		 Automatic proxy configuration URL.
Validators:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• type domainname
• the domain name can be a hostname
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Automatic proxy configuration URL"
no_proxy
domainname multiple disabled unique		 Address for which proxy will be desactivated.
Connections to localhost, 127.0.0.1/8 and ::1 are never proxied.
Validators:
• type domainname
• the domain name can starts by a dot
• the domain name can be a hostname
• the domain name can be an IP
• the domain name can be network in CIDR format
Examples:
• .mozilla.org
• .net.nz
• 192.168.1.0/24
Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
prompt_authentication
boolean mandatory disabled		 Prompt for authentication if password is saved.
Default: true
Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
proxy_dns_socks5
boolean mandatory		 Use proxy DNS when using SOCKS v5.
Default: false

Let's generate the changelog

rougail -m firefox/ -o doc --doc.contents changelog

New variable

Variable Description
proxy_dns_socks5
boolean mandatory		 Use proxy DNS when using SOCKS v5.
Default: false

User datas

Example 1

config/01/config.yml

---

Output

rougail -m firefox/ -u yaml -yf config/01/config.yml

╭──────────────────── Caption ─────────────────────╮
│ Undocumented but modified variable Default value │
╰──────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: No proxy
┗━━ 📓 Use proxy DNS when using SOCKS v5: false

Example 2

config/02/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net

Output

rougail -m firefox/ -u yaml -yf config/02/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Variable                           Default value               │
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀
┃   loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file
┃   ┃   ┃   "config/02/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v5
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: false

Example 3

config/03/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
proxy_dns_socks5: true

Output

rougail -m firefox/ -u yaml -yf config/03/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Variable                           Default value               │
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀
┃   loaded from the YAML file "config/03/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file
┃   ┃   ┃   "config/03/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v5
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: true ◀ loaded from the YAML file
    "config/03/config.yml" (⏳ false)

Example 4

config/04/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
  socks_proxy:
    version: v4

Output

rougail -m firefox/ -u yaml -yf config/04/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Variable                           Default value               │
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀
┃   loaded from the YAML file "config/04/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file
┃   ┃   ┃   "config/04/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v4 ◀ loaded from the YAML file
┃           "config/04/config.yml" (⏳ v5)
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: false
