• [tutorial v1.1_050] A disabled family (diff)

[tutorial v1.1_051] A conditional disabled family

View the diff

Read the documentation

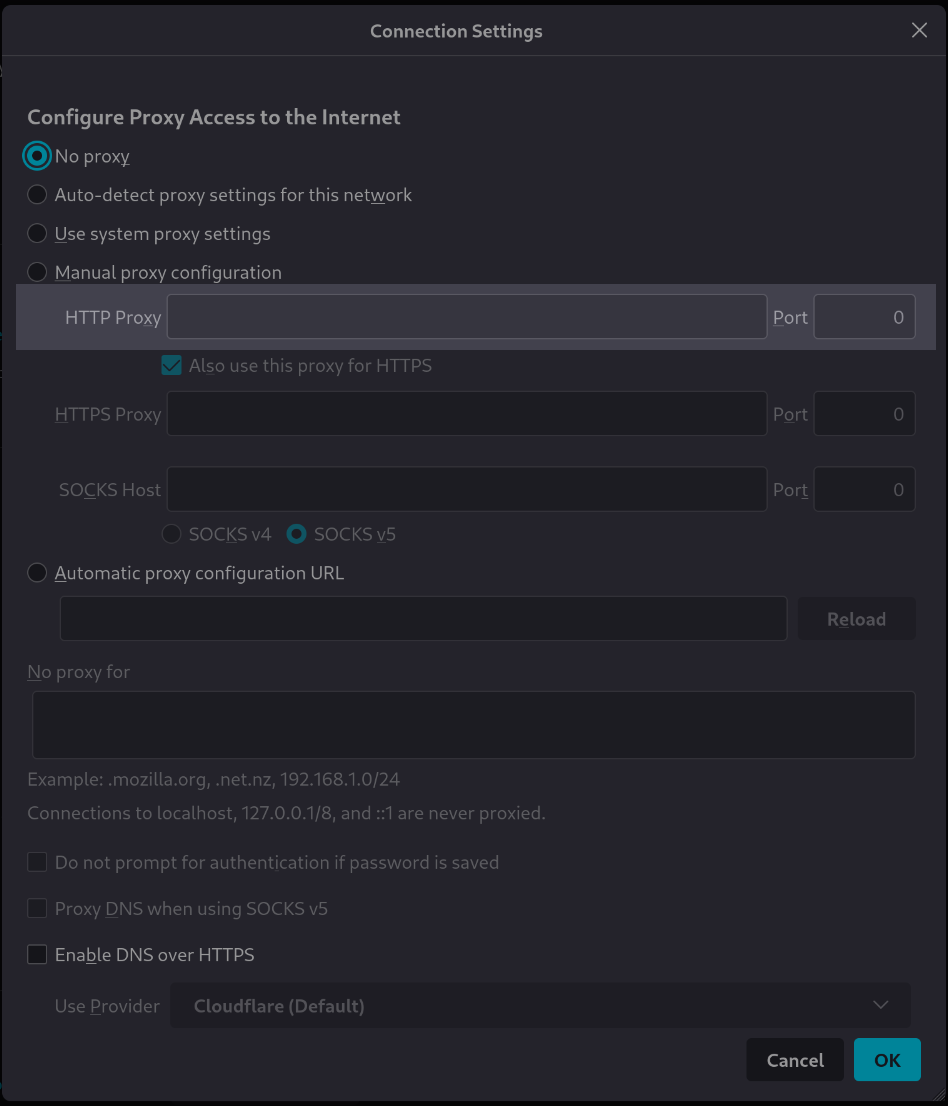

Screenshot

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_051

Structure

.
└── firefox
    ├── 00-proxy.yml
    ├── 10-manual.yml
    └── 20-manual.yml

Contents of the firefox/10-manual.yml file

%YAML 1.2
---
version: 1.1

manual:
  description: Manual proxy configuration
  disabled:
    variable: _.proxy_mode
    when_not: Manual proxy configuration

  http_proxy:  # HTTP Proxy

    address:
      description: HTTP address
      type: domainname
      params:
        allow_ip: true

    port:
      description: HTTP Port
      type: port
      default: 8080
...

---

Let's generate the documentation

rougail -m firefox/ -o doc

Variable	Description
proxy_mode choice mandatory	Configure Proxy Access to the Internet. Choices: • No proxy ← (default) • Auto-detect proxy settings for this network • Use system proxy settings • Manual proxy configuration • Automatic proxy configuration URL

Manual proxy configuration

Note

Path: manual
disabled
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Manual proxy configuration"

HTTP Proxy

Note

Path: manual.http_proxy

Variable	Description
manual.http_proxy.address domainname mandatory	HTTP address. Validators: • type domainname • the domain name can be an IP
manual.http_proxy.port port mandatory	HTTP Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: 8080

Variable	Description
manual.use_for_https boolean mandatory	Also use this proxy for HTTPS. Default: true

HTTPS Proxy

Note

Path: manual.https_proxy

Variable	Description
manual.https_proxy.address domainname mandatory	HTTPS address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "HTTP address"
manual.https_proxy.port port mandatory	HTTPS Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "HTTP Port"

---

Let's generate the changelog

rougail -m firefox/ -o doc --doc.contents changelog

New variables

Variable	Description
manual.http_proxy.address domainname mandatory	HTTP address. Validators: • type domainname • the domain name can be an IP
manual.http_proxy.port port mandatory	HTTP Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: 8080
manual.use_for_https boolean mandatory	Also use this proxy for HTTPS. Default: true
manual.https_proxy.address domainname mandatory	HTTPS address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "HTTP address"
manual.https_proxy.port port mandatory	HTTPS Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "HTTP Port"

---

User datas

Example 1

config/01/config.yml

---

---

Output

rougail -m firefox/ -u yaml -yf config/01/config.yml

Note

Caption:

• Variable
• Default value

Variables:

• 📓 proxy_mode (Configure Proxy Access to the Internet): No proxy

---

Example 2

config/02/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
    port: 3128
  use_for_https: false

---

Output

rougail -m firefox/ -u yaml -yf config/02/config.yml

Note

Caption:

• Variable
• Default value
• Modified value
• (⏳ Original default value)

Variables:

• 📓 proxy_mode (Configure Proxy Access to the Internet): Manual proxy configuration ← loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
• 📂 manual (Manual proxy configuration)
  • 📂 http_proxy (HTTP Proxy)
    • 📓 address (HTTP address): http.proxy.net ← loaded from the YAML file "config/02/config.yml"
    • 📓 port (HTTP Port): 3128 ← loaded from the YAML file "config/02/config.yml" (⏳ 8080)
  • 📓 use_for_https (Also use this proxy for HTTPS): false ← loaded from the YAML file "config/02/config.yml" (⏳ true)
  • 📂 https_proxy (HTTPS Proxy)
    • 📓 address (HTTPS address): http.proxy.net
    • 📓 port (HTTPS Port): 3128

---
