[tutorial v1.1_102] A non mandatory variable
Read the tutorial "A non mandatory variable" in the documentation

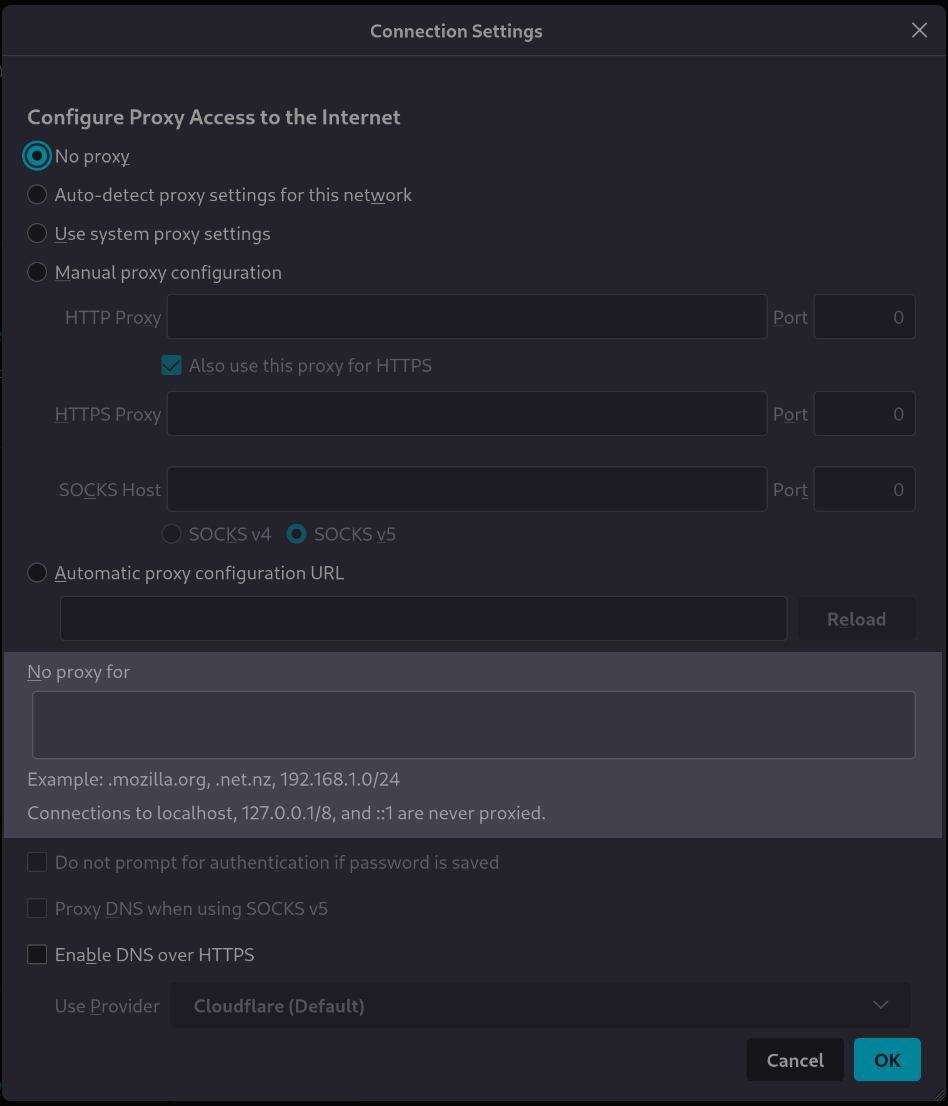

Screenshot
Clone and install
To test this tutorial, you need to download this repository and install Rougail:
git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml
Then switch to the tutorial page:
git switch --detach v1.1_102
Structure
.
├── firefox
│ ├── 00-proxy.yml
│ ├── 10-manual.yml
│ ├── 20-manual.yml
│ ├── 30-auto.yml
│ └── 40-no_proxy.yml
└── types
└── proxy
└── 00-type.yml
Contents of the firefox/40-no_proxy.yml file
%YAML 1.2
---
version: 1.1
no_proxy:
description: Address for which proxy will be desactivated
type: domainname
params:
allow_ip: true
allow_cidr_network: true
allow_without_dot: true
allow_startswith_dot: true
multi: true
mandatory: false
disabled:
variable: _.proxy_mode
when: No proxy
...
Let's generate the documentation```shell
rougail -m firefox/ --types types/proxy -o doc
| Variable | Description |
|------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **<a id="proxy_mode" name="proxy_mode">proxy_mode</a>**<br/>[`choice`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Configure Proxy Access to the Internet.<br/>**Choices**: <br/>• No proxy **← (default)**<br/>• Auto-detect proxy settings for this network<br/>• Use system proxy settings<br/>• Manual proxy configuration<br/>• Automatic proxy configuration URL |
#### Manual proxy configuration
> [!NOTE]
>
> **Path**: manual\
> *`disabled`*\
> **Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" hasn't the value "Manual proxy configuration".
##### HTTP Proxy
> [!NOTE]
>
> **Path**: manual.http_proxy
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **<a id="manual.http_proxy.address" name="manual.http_proxy.address">manual.http_proxy.address</a>**<br/>[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Proxy address.<br/>**Validators**: <br/>• type domainname<br/>• the domain name can be an IP |
| **<a id="manual.http_proxy.port" name="manual.http_proxy.port">manual.http_proxy.port</a>**<br/>[`port`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Proxy port.<br/>**Validators**: <br/>• well-known ports (1 to 1023) are allowed<br/>• registred ports (1024 to 49151) are allowed<br/>• private ports (greater than 49152) are allowed<br/>**Default**: 8080 |
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------|
| **<a id="manual.use_for_https" name="manual.use_for_https">manual.use_for_https</a>**<br/>[`boolean`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Also use this proxy for HTTPS.<br/>**Default**: true |
##### HTTPS Proxy
> [!NOTE]
>
> **Path**: manual.https_proxy\
> *`hidden`*\
> **Hidden**: when the variable "[Also use this proxy for HTTPS](#manual.use_for_https)" has the value "true".
| Variable | Description |
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **<a id="manual.https_proxy.address" name="manual.https_proxy.address">manual.https_proxy.address</a>**<br/>[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Proxy address.<br/>**Validators**: <br/>• type domainname<br/>• the domain name can be an IP<br/>**Default**: the value of the variable "[Proxy address](#manual.http_proxy.address)". |
| **<a id="manual.https_proxy.port" name="manual.https_proxy.port">manual.https_proxy.port</a>**<br/>[`port`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Proxy port.<br/>**Validators**: <br/>• well-known ports (1 to 1023) are allowed<br/>• registred ports (1024 to 49151) are allowed<br/>• private ports (greater than 49152) are allowed<br/>**Default**: the value of the variable "[Proxy port](#manual.http_proxy.port)". |
##### SOCKS Proxy
> [!NOTE]
>
> **Path**: manual.socks_proxy
| Variable | Description |
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **<a id="manual.socks_proxy.address" name="manual.socks_proxy.address">manual.socks_proxy.address</a>**<br/>[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Proxy address.<br/>**Validators**: <br/>• type domainname<br/>• the domain name can be an IP<br/>**Default**: the value of the variable "[Proxy address](#manual.http_proxy.address)". |
| **<a id="manual.socks_proxy.port" name="manual.socks_proxy.port">manual.socks_proxy.port</a>**<br/>[`port`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Proxy port.<br/>**Validators**: <br/>• well-known ports (1 to 1023) are allowed<br/>• registred ports (1024 to 49151) are allowed<br/>• private ports (greater than 49152) are allowed<br/>**Default**: the value of the variable "[Proxy port](#manual.http_proxy.port)". |
| **<a id="manual.socks_proxy.version" name="manual.socks_proxy.version">manual.socks_proxy.version</a>**<br/>[`choice`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | SOCKS host version used by proxy.<br/>**Choices**: <br/>• v4<br/>• v5 **← (default)** |
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **<a id="auto" name="auto">auto</a>**<br/>[`web address`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` *`disabled`* | Automatic proxy configuration URL.<br/>**Validators**: <br/>• well-known ports (1 to 1023) are allowed<br/>• registred ports (1024 to 49151) are allowed<br/>• type domainname<br/>• the domain name can be a hostname<br/>**Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" hasn't the value "Automatic proxy configuration URL". |
| **<a id="no_proxy" name="no_proxy">no_proxy</a>**<br/>[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `multiple` *`disabled`* `unique` | Address for which proxy will be desactivated.<br/>**Validators**: <br/>• type domainname<br/>• the domain name can starts by a dot<br/>• the domain name can be a hostname<br/>• the domain name can be an IP<br/>• the domain name can be network in CIDR format<br/>**Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" has the value "No proxy". |
***
### Let's generate the changelog```shell
rougail -m firefox/ --types types/proxy -o doc --doc.contents changelog --doc.changelog.previous_json_file previous.yml
Modified variable
| Variable | Description |
|---|---|
no_proxymandatorydomainname multiple disabled unique |
Address for which proxy will be desactivated. Validators: • type domainname • the domain name can starts by a dot • the domain name can be a hostname • the domain name can be an IP • the domain name can be network in CIDR format Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy". |
User datas### Example 1#### config/01/config.yml
---
Output```shell
rougail -m firefox/ --types types/proxy -u yaml -yf config/01/config.yml
> [!NOTE]
>
> **Caption:**
> - Variable
> - <span style="color: #B8860B">Default value</span>
Variables:
- :notebook: proxy_mode (Configure Proxy Access to the Internet): <span style="color: #B8860B">No proxy</span>
***
### Example 2#### config/02/config.yml
```yml
---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat
no_proxy:
- example.net
- 192.168.1.0/24
Output```shell
rougail -m firefox/ --types types/proxy -u yaml -yf config/02/config.yml
> [!NOTE]
>
> **Caption:**
> - Variable
> - <span style="color: #006400">Modified value</span>
> - (:hourglass_flowing_sand: Original default value)
Variables:
- :notebook: proxy_mode (Configure Proxy Access to the Internet): <span style="color: #006400">Automatic proxy configuration URL</span> ← loaded from the YAML file "config/02/config.yml" (:hourglass_flowing_sand: No proxy)
- :notebook: auto (Automatic proxy configuration URL): <span style="color: #006400">https://auto.proxy.net/wpad.dat</span> ← loaded from the YAML file "config/02/config.yml"
- :notebook: no_proxy (Address for which proxy will be desactivated):
- <span style="color: #006400">example.net</span> ← loaded from the YAML file "config/02/config.yml"
- <span style="color: #006400">192.168.1.0/24</span> ← loaded from the YAML file "config/02/config.yml"
***
### Example 3#### config/03/config.yml
```yml
---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat
Output```shell
rougail -m firefox/ --types types/proxy -u yaml -yf config/03/config.yml
> [!NOTE]
>
> **Caption:**
> - Variable
> - <span style="color: #B8860B">Default value</span>
> - <span style="color: #006400">Modified value</span>
> - (:hourglass_flowing_sand: Original default value)
Variables:
- :notebook: proxy_mode (Configure Proxy Access to the Internet): <span style="color: #006400">Automatic proxy configuration URL</span> ← loaded from the YAML file "config/03/config.yml" (:hourglass_flowing_sand: No proxy)
- :notebook: auto (Automatic proxy configuration URL): <span style="color: #006400">https://auto.proxy.net/wpad.dat</span> ← loaded from the YAML file "config/03/config.yml"
- :notebook: no_proxy (Address for which proxy will be desactivated): <span style="color: #B8860B">[]</span>
***
- [[tutorial v1.1_103] Examples](https://forge.cloud.silique.fr/stove/rougail-tutorials/src/commit/v1.1_103/README.md) ([diff](https://forge.cloud.silique.fr/stove/rougail-tutorials/compare/v1.1_103~1..v1.1_103))
