[tutorial v1.1_093] Examples

View the diff

Read the documentation

Screenshot

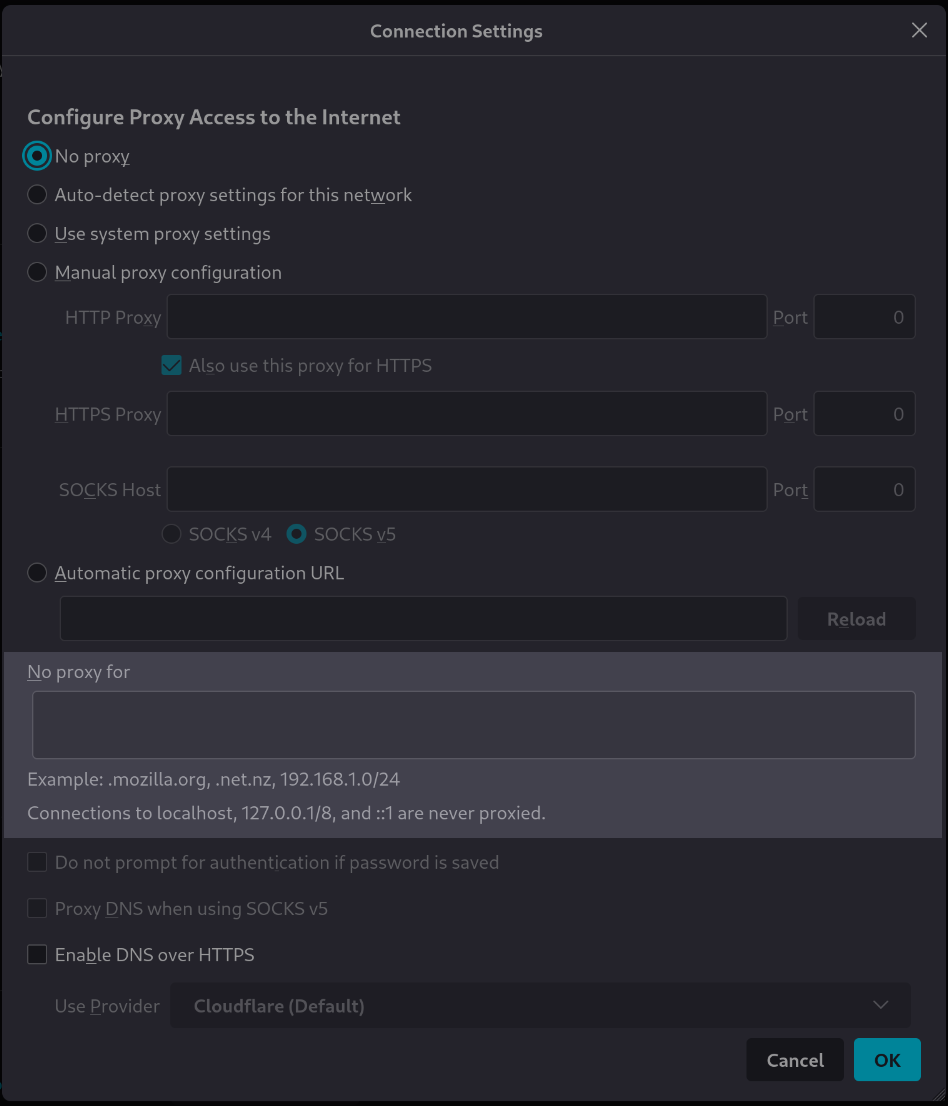

Firefox Proxy setting

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_093

Structure

.
└── firefox
    ├── 00-proxy.yml
    ├── 10-manual.yml
    ├── 20-manual.yml
    ├── 30-auto.yml
    └── 40-no_proxy.yml


Contents of the firefox/40-no_proxy.yml file

%YAML 1.2
---
version: 1.1

no_proxy:
  description: Address for which proxy will be desactivated
  examples:
    - .mozilla.org
    - .net.nz
    - 192.168.1.0/24
  type: domainname
  params:
    allow_ip: true
    allow_cidr_network: true
    allow_without_dot: true
    allow_startswith_dot: true
  multi: true
  mandatory: false
  disabled:
    variable: _.proxy_mode
    when: No proxy
...

Let's generate the documentation

rougail -m firefox/ -o doc
Variable Description
proxy_mode
choice mandatory		 Configure Proxy Access to the Internet.
Choices:
• No proxy ← (default)
• Auto-detect proxy settings for this network
• Use system proxy settings
• Manual proxy configuration
• Automatic proxy configuration URL

Manual proxy configuration

🛈 Informations

Path: manual
disabled
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Manual proxy configuration"

HTTP Proxy

🛈 Informations

Path: manual.http_proxy

Variable Description
manual.http_proxy.address
domainname mandatory		 HTTP address.
Validators:
• type domainname
• the domain name can be an IP
manual.http_proxy.port
port mandatory		 HTTP Port.
Validators:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• private ports (greater than 49152) are allowed
Default: 8080
Variable Description
manual.use_for_https
boolean mandatory		 Also use this proxy for HTTPS.
Default: true
HTTPS Proxy or SOCKS Proxy

🛈 Informations

This family builds families dynamically.
Path:

  • manual.https_proxy
  • manual.socks_proxy
    hidden
    Hidden: in HTTPS case if "Also use this proxy for HTTPS" is set to "true"
    Identifiers:
  • HTTPS
  • SOCKS
Variable Description
manual.https_proxy.address
manual.socks_proxy.address
domainname mandatory		 HTTPS or SOCKS address.
Validators:
• type domainname
• the domain name can be an IP
Default: the value of the variable "HTTP address"
manual.https_proxy.port
manual.socks_proxy.port
port mandatory		 HTTPS or SOCKS port.
Validators:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• private ports (greater than 49152) are allowed
Default: the value of the variable "HTTP Port"
manual.https_proxy.version
manual.socks_proxy.version
choice mandatory disabled		 SOCKS host version used by proxy.
Choices:
• v4
• v5 ← (default)
Disabled: when the identifier is "HTTPS"
Variable Description
auto
web address mandatory disabled		 Automatic proxy configuration URL.
Validators:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• type domainname
• the domain name can be a hostname
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Automatic proxy configuration URL"
no_proxy
domainname multiple disabled unique		 Address for which proxy will be desactivated.
Validators:
• type domainname
• the domain name can starts by a dot
• the domain name can be a hostname
• the domain name can be an IP
• the domain name can be network in CIDR format
Examples:
• .mozilla.org
• .net.nz
• 192.168.1.0/24
Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"

Let's generate the changelog

rougail -m firefox/ -o doc --doc.contents changelog

Modified variable

Variable Description
no_proxy
domainname multiple disabled unique		 Address for which proxy will be desactivated.
Validators:
• type domainname
• the domain name can starts by a dot
• the domain name can be a hostname
• the domain name can be an IP
• the domain name can be network in CIDR format
Examples:
• .mozilla.org
• .net.nz
• 192.168.1.0/24
Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"

User datas

Example 1

config/01/config.yml

---

Output

rougail -m firefox/ -u yaml -yf config/01/config.yml

╭──────────────────── Caption ─────────────────────╮
│ Undocumented but modified variable Default value │
╰──────────────────────────────────────────────────╯
Variables:
┗━━ 📓 Configure Proxy Access to the Internet: No proxy

Example 2

config/02/config.yml

---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat
no_proxy:
  - example.net
  - 192.168.1.0/24

Output

rougail -m firefox/ -u yaml -yf config/02/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Automatic proxy configuration URL
┃   ◀ loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
┣━━ 📓 Automatic proxy configuration URL: https://auto.proxy.net/wpad.dat ◀
┃   loaded from the YAML file "config/02/config.yml"
┗━━ 📓 Address for which proxy will be desactivated:
    ┣━━ example.net ◀ loaded from the YAML file "config/02/config.yml"
    ┗━━ 192.168.1.0/24 ◀ loaded from the YAML file "config/02/config.yml"

Example 3

config/03/config.yml

---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat

Output

rougail -m firefox/ -u yaml -yf config/03/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Automatic proxy configuration URL
┃   ◀ loaded from the YAML file "config/03/config.yml" (⏳ No proxy)
┣━━ 📓 Automatic proxy configuration URL: https://auto.proxy.net/wpad.dat ◀
┃   loaded from the YAML file "config/03/config.yml"
┗━━ 📓 Address for which proxy will be desactivated:
