[tutorial v1.1_098] A variable in avanced mode

View the diff

Read the documentation

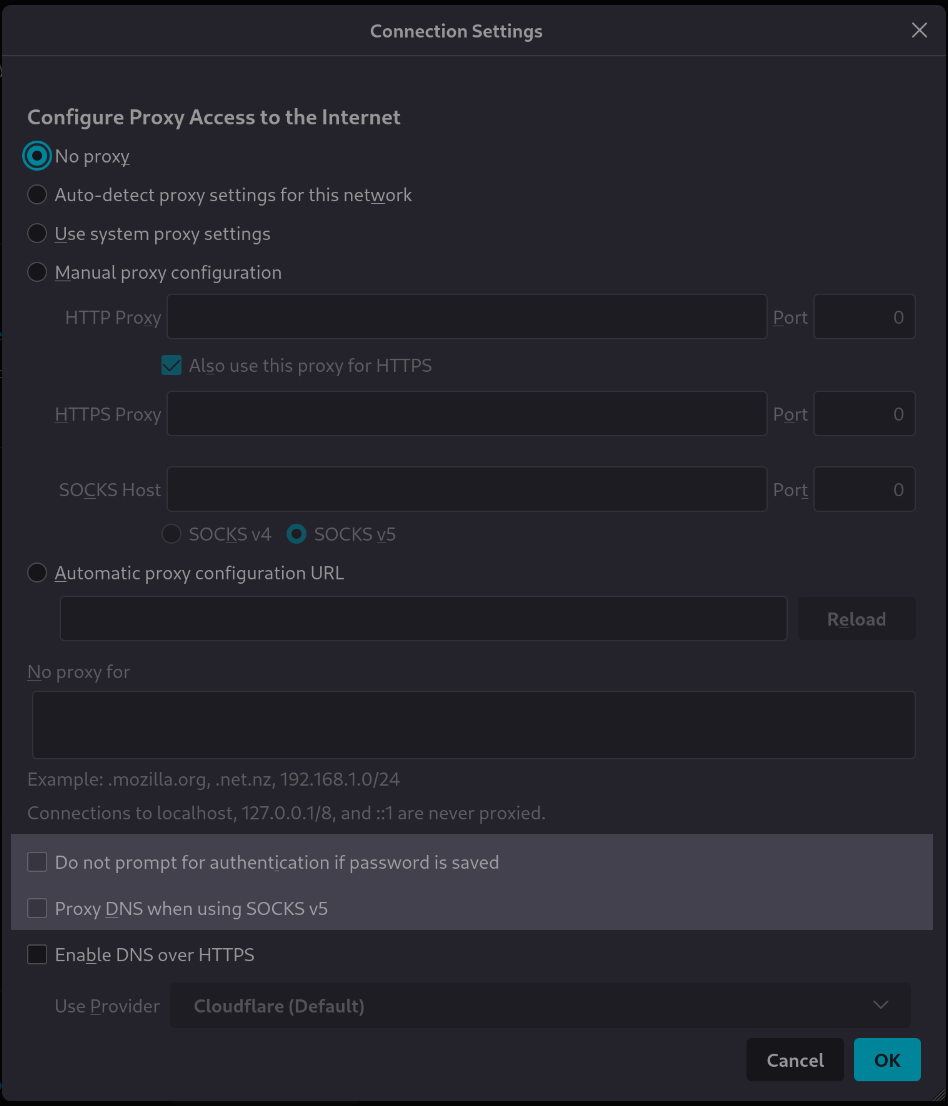

Screenshot

Clone and install

To test this tutorial, you need to download this repository and install Rougail:

git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml

Then switch to the tutorial page:

git switch --detach v1.1_098

Structure

.
└── firefox
    ├── 00-proxy.yml
    ├── 10-manual.yml
    ├── 20-manual.yml
    ├── 30-auto.yml
    ├── 40-no_proxy.yml
    ├── 50-prompt_authentication.yml
    └── 55-proxy_dns_socks5.yml

Contents of the firefox/55-proxy_dns_socks5.yml file

%YAML 1.2
---
version: 1.1

proxy_dns_socks5:
  description: Use proxy DNS when using SOCKS v5
  mode: advanced
  default: false
  disabled:
    jinja: |-
      {% if _.manual.socks_proxy.version is propertyerror %}
        the proxy mode is not manual
      {% elif _.manual.socks_proxy.version == 'v4' %}
        socks version is v4
      {% endif %}
    description: |-
      if "firefox.proxy_mode" is not "Manual proxy configuration"
      or "firefox.manual.socks_proxy.version" is "v4"
...

Let's generate the documentation

rougail -m firefox/ --modes_level basic standard advanced -o doc

Variable	Description
proxy_mode choice standard mandatory	Configure Proxy Access to the Internet. Choices: • No proxy ← (default) • Auto-detect proxy settings for this network • Use system proxy settings • Manual proxy configuration • Automatic proxy configuration URL

Manual proxy configuration

🛈 Informations

Path: manual
basic disabled
Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Manual proxy configuration"

HTTP Proxy

🛈 Informations

Path: manual.http_proxy
basic

Variable	Description
manual.http_proxy.address domainname basic mandatory	HTTP address. Validators: • type domainname • the domain name can be an IP
manual.http_proxy.port port standard mandatory	HTTP Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: 8080

Variable	Description
manual.use_for_https boolean standard mandatory	Also use this proxy for HTTPS. Default: true

HTTPS Proxy or SOCKS Proxy

🛈 Informations

This family builds families dynamically.
Path:

• manual.https_proxy
• manual.socks_proxy
  standard hidden
  Hidden: in HTTPS case if "Also use this proxy for HTTPS" is set to "true"
  Identifiers:
• HTTPS
• SOCKS

Variable	Description
manual.https_proxy.address manual.socks_proxy.address domainname standard mandatory	HTTPS or SOCKS address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "HTTP address"
manual.https_proxy.port manual.socks_proxy.port port standard mandatory	HTTPS or SOCKS port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "HTTP Port"
manual.https_proxy.version manual.socks_proxy.version choice standard mandatory disabled	SOCKS host version used by proxy. Choices: • v4 • v5 ← (default) Disabled: when the identifier is "HTTPS"

Variable	Description
auto web address basic mandatory disabled	Automatic proxy configuration URL. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • type domainname • the domain name can be a hostname Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Automatic proxy configuration URL"
no_proxy domainname multiple standard disabled unique	Address for which proxy will be desactivated. Connections to localhost, 127.0.0.1/8 and ::1 are never proxied. Validators: • type domainname • the domain name can starts by a dot • the domain name can be a hostname • the domain name can be an IP • the domain name can be network in CIDR format Examples: • .mozilla.org • .net.nz • 192.168.1.0/24 Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
prompt_authentication boolean standard mandatory disabled	Prompt for authentication if password is saved. Default: true Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
proxy_dns_socks5 boolean advanced mandatory disabled	Use proxy DNS when using SOCKS v5. Default: false Disabled: if "firefox.proxy_mode" is not "Manual proxy configuration" or "firefox.manual.socks_proxy.version" is "v4"

Let's generate the changelog

rougail -m firefox/ --modes_level basic standard advanced -o doc --doc.contents changelog

Modified variables

Variable	Description
proxy_mode (None, [], ['standard']) choice standard mandatory	Configure Proxy Access to the Internet. Choices: • No proxy ← (default) • Auto-detect proxy settings for this network • Use system proxy settings • Manual proxy configuration • Automatic proxy configuration URL
manual.http_proxy.address (None, [], ['basic']) domainname basic mandatory	HTTP address. Validators: • type domainname • the domain name can be an IP
manual.http_proxy.port (None, [], ['standard']) port standard mandatory	HTTP Port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: 8080
manual.use_for_https (None, [], ['standard']) boolean standard mandatory	Also use this proxy for HTTPS. Default: true
manual.https_proxy.address manual.socks_proxy.address (None, [], ['standard']) domainname standard mandatory	HTTPS or SOCKS address. Validators: • type domainname • the domain name can be an IP Default: the value of the variable "HTTP address"
manual.https_proxy.port manual.socks_proxy.port (None, [], ['standard']) port standard mandatory	HTTPS or SOCKS port. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • private ports (greater than 49152) are allowed Default: the value of the variable "HTTP Port"
manual.https_proxy.version manual.socks_proxy.version (None, [], ['standard']) choice standard mandatory disabled	SOCKS host version used by proxy. Choices: • v4 • v5 ← (default) Disabled: when the identifier is "HTTPS"
auto (None, [], ['basic']) web address basic mandatory disabled	Automatic proxy configuration URL. Validators: • well-known ports (1 to 1023) are allowed • registred ports (1024 to 49151) are allowed • type domainname • the domain name can be a hostname Disabled: when the variable "Configure Proxy Access to the Internet" hasn't the value "Automatic proxy configuration URL"
no_proxy (None, [], ['standard']) domainname multiple standard disabled unique	Address for which proxy will be desactivated. Connections to localhost, 127.0.0.1/8 and ::1 are never proxied. Validators: • type domainname • the domain name can starts by a dot • the domain name can be a hostname • the domain name can be an IP • the domain name can be network in CIDR format Examples: • .mozilla.org • .net.nz • 192.168.1.0/24 Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
prompt_authentication (None, [], ['standard']) boolean standard mandatory disabled	Prompt for authentication if password is saved. Default: true Disabled: when the variable "Configure Proxy Access to the Internet" has the value "No proxy"
proxy_dns_socks5 (None, [], ['advanced']) boolean advanced mandatory disabled	Use proxy DNS when using SOCKS v5. Default: false Disabled: if "firefox.proxy_mode" is not "Manual proxy configuration" or "firefox.manual.socks_proxy.version" is "v4"

User datas

Example 1

config/01/config.yml

---

Output

rougail -m firefox/ --modes_level basic standard advanced -u yaml -yf config/01/config.yml

╭──────────────────── Caption ─────────────────────╮
│ Undocumented but modified variable Default value │
╰──────────────────────────────────────────────────╯
Variables:
┗━━ 📓 Configure Proxy Access to the Internet: No proxy

Example 2

config/02/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net

Output

rougail -m firefox/ --modes_level basic standard advanced -u yaml -yf config/02/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented variable              Default value               │
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀
┃   loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file
┃   ┃   ┃   "config/02/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v5
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: false

Example 3

config/03/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
proxy_dns_socks5: true

Output

rougail -m firefox/ --modes_level basic standard advanced -u yaml -yf config/03/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented variable              Default value               │
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀
┃   loaded from the YAML file "config/03/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file
┃   ┃   ┃   "config/03/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v5
┣━━ 📓 Address for which proxy will be desactivated:
┣━━ 📓 Prompt for authentication if password is saved: true
┗━━ 📓 Use proxy DNS when using SOCKS v5: true ◀ loaded from the YAML file
    "config/03/config.yml" (⏳ false)

Example 4

config/04/config.yml

---
proxy_mode: Manual proxy configuration
manual:
  http_proxy:
    address: http.proxy.net
  socks_proxy:
    version: v4

Output

rougail -m firefox/ --modes_level basic standard advanced -u yaml -yf config/04/config.yml

╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented variable              Default value               │
│ Undocumented but modified variable Modified value              │
│                                    (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Manual proxy configuration ◀
┃   loaded from the YAML file "config/04/config.yml" (⏳ No proxy)
┣━━ 📂 Manual proxy configuration
┃   ┣━━ 📂 HTTP Proxy
┃   ┃   ┣━━ 📓 HTTP address: http.proxy.net ◀ loaded from the YAML file
┃   ┃   ┃   "config/04/config.yml"
┃   ┃   ┗━━ 📓 HTTP Port: 8080
┃   ┣━━ 📓 Also use this proxy for HTTPS: true
┃   ┗━━ 📂 SOCKS Proxy
┃       ┣━━ 📓 SOCKS address: http.proxy.net
┃       ┣━━ 📓 SOCKS port: 8080
┃       ┗━━ 📓 SOCKS host version used by proxy: v4 ◀ loaded from the YAML file
┃           "config/04/config.yml" (⏳ v5)
┣━━ 📓 Address for which proxy will be desactivated:
┗━━ 📓 Prompt for authentication if password is saved: true
