# [tutorial v1.1_093] Examples
[View the diff](https://forge.cloud.silique.fr/stove/rougail-tutorials/compare/v1.1_093~1..v1.1_093)
[Read the documentation](https://pedago.gwenaelremond.fr/bribes/rougail/tutorial/calculation.html#examples)

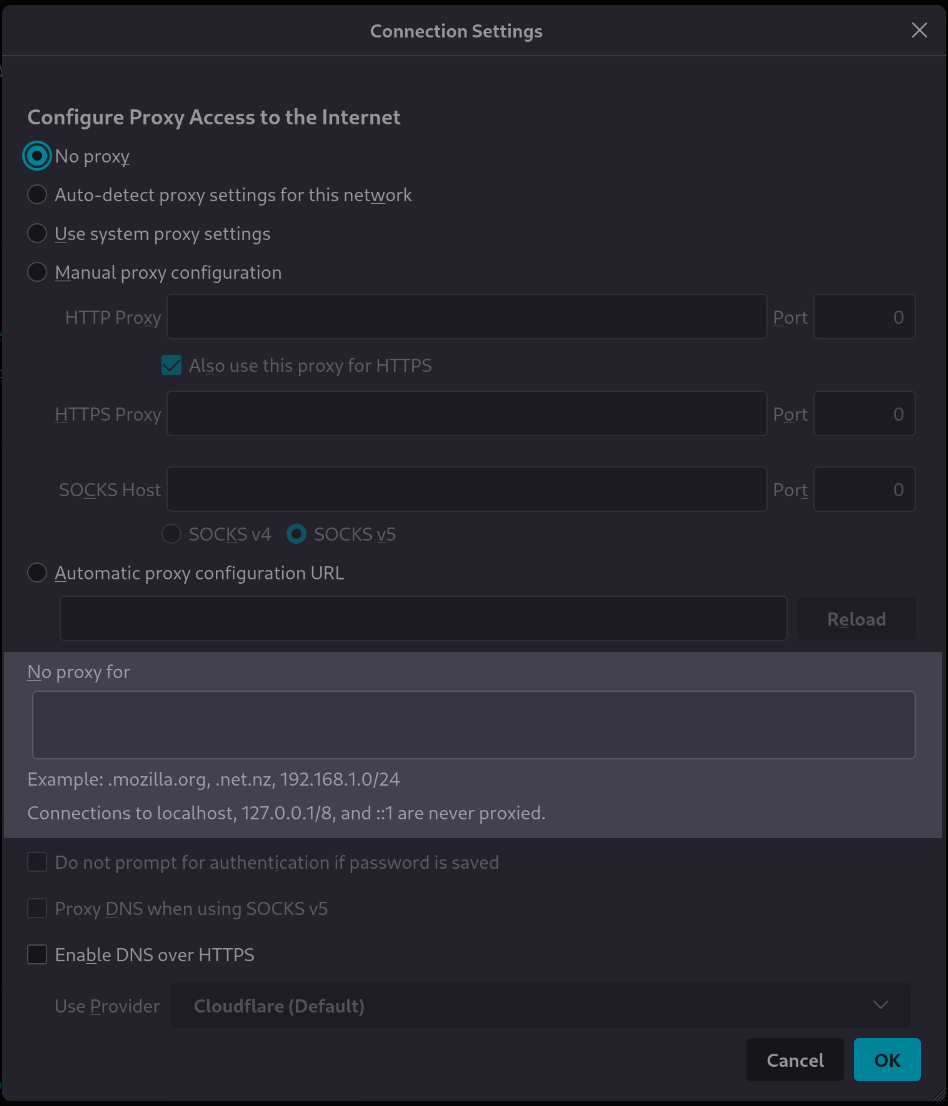

## Screenshot
## Clone and install
To test this tutorial, you need to download this repository and install Rougail:
```shell
git clone -b 1.1 https://forge.cloud.silique.fr/stove/rougail-tutorials.git
cd rougail-tutorials
python -m venv venv_rougail
. venv_rougail/bin/activate
pip install rougail-cli rougail-output-exporter rougail-output-doc rougail-user-data-yaml
```
Then switch to the tutorial page:
```shell
git switch --detach v1.1_093
```
## Structure
.
└── firefox
├── 00-proxy.yml
├── 10-manual.yml
├── 20-manual.yml
├── 30-auto.yml
└── 40-no_proxy.yml
Contents of the firefox/40-no_proxy.yml file
```yml
%YAML 1.2
---
version: 1.1
no_proxy:
description: Address for which proxy will be desactivated
examples:
- .mozilla.org
- .net.nz
- 192.168.1.0/24
type: domainname
params:
allow_ip: true
allow_cidr_network: true
allow_without_dot: true
allow_startswith_dot: true
multi: true
mandatory: false
disabled:
variable: _.proxy_mode
when: No proxy
...
```
### Let's generate the documentation
```shell
rougail -m firefox/ -o doc
```
| Variable | Description |
|------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **proxy_mode**
[`choice`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Configure Proxy Access to the Internet.
**Choices**:
• No proxy **← (default)**
• Auto-detect proxy settings for this network
• Use system proxy settings
• Manual proxy configuration
• Automatic proxy configuration URL |
#### Manual proxy configuration
> **🛈 Informations**
>
> **Path**: manual\
> *`disabled`*\
> **Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" hasn't the value "Manual proxy configuration"
##### HTTP Proxy
> **🛈 Informations**
>
> **Path**: manual.http_proxy
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **manual.http_proxy.address**
[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | HTTP address.
**Validators**:
• type domainname
• the domain name can be an IP |
| **manual.http_proxy.port**
[`port`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | HTTP Port.
**Validators**:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• private ports (greater than 49152) are allowed
**Default**: 8080 |
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------|
| **manual.use_for_https**
[`boolean`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | Also use this proxy for HTTPS.
**Default**: true |
##### *HTTPS* Proxy or *SOCKS* Proxy
> **🛈 Informations**
>
> This family builds families dynamically.\
> **Path**:
> - manual.*https*_proxy
> - manual.*socks*_proxy\
> *`hidden`*\
> **Hidden**: in HTTPS case if "[Also use this proxy for HTTPS](#manual.use_for_https)" is set to "true"\
> **Identifiers**:
> - HTTPS
> - SOCKS
| Variable | Description |
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **manual.*https*_proxy.address**
**manual.*socks*_proxy.address**
[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | *HTTPS* or *SOCKS* address.
**Validators**:
• type domainname
• the domain name can be an IP
**Default**: the value of the variable "[HTTP address](#manual.http_proxy.address)" |
| **manual.*https*_proxy.port**
**manual.*socks*_proxy.port**
[`port`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` | *HTTPS* or *SOCKS* port.
**Validators**:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• private ports (greater than 49152) are allowed
**Default**: the value of the variable "[HTTP Port](#manual.http_proxy.port)" |
| **manual.*https*_proxy.version**
**manual.*socks*_proxy.version**
[`choice`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` *`disabled`* | SOCKS host version used by proxy.
**Choices**:
• v4
• v5 **← (default)**
**Disabled**: when the identifier is "HTTPS" |
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **auto**
[`web address`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `mandatory` *`disabled`* | Automatic proxy configuration URL.
**Validators**:
• well-known ports (1 to 1023) are allowed
• registred ports (1024 to 49151) are allowed
• type domainname
• the domain name can be a hostname
**Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" hasn't the value "Automatic proxy configuration URL" |
| **no_proxy**
[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `multiple` *`disabled`* `unique` | Address for which proxy will be desactivated.
**Validators**:
• type domainname
• the domain name can starts by a dot
• the domain name can be a hostname
• the domain name can be an IP
• the domain name can be network in CIDR format
**Examples**:
• .mozilla.org
• .net.nz
• 192.168.1.0/24
**Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" has the value "No proxy" |
### Let's generate the changelog
```shell
rougail -m firefox/ -o doc --doc.contents changelog
```
#### Modified variable
| Variable | Description |
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| **no_proxy**
[`domainname`](https://rougail.readthedocs.io/en/latest/variable.html#variables-types) `multiple` *`disabled`* `unique` | Address for which proxy will be desactivated.
**Validators**:
• type domainname
• the domain name can starts by a dot
• the domain name can be a hostname
• the domain name can be an IP
• the domain name can be network in CIDR format
**Examples**:
• .mozilla.org
• .net.nz
• 192.168.1.0/24
**Disabled**: when the variable "[Configure Proxy Access to the Internet](#proxy_mode)" has the value "No proxy" |
## User datas
### Example 1
#### config/01/config.yml
```yml
---
```
#### Output
```shell
rougail -m firefox/ -u yaml -yf config/01/config.yml
```
╭──────────────────── Caption ─────────────────────╮
│ Undocumented but modified variable Default value │
╰──────────────────────────────────────────────────╯
Variables:
┗━━ 📓 Configure Proxy Access to the Internet: No proxy
### Example 2
#### config/02/config.yml
```yml
---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat
no_proxy:
- example.net
- 192.168.1.0/24
```
#### Output
```shell
rougail -m firefox/ -u yaml -yf config/02/config.yml
```
╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented but modified variable Modified value │
│ (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Automatic proxy configuration URL
┃ ◀ loaded from the YAML file "config/02/config.yml" (⏳ No proxy)
┣━━ 📓 Automatic proxy configuration URL: https://auto.proxy.net/wpad.dat ◀
┃ loaded from the YAML file "config/02/config.yml"
┗━━ 📓 Address for which proxy will be desactivated:
┣━━ example.net ◀ loaded from the YAML file "config/02/config.yml"
┗━━ 192.168.1.0/24 ◀ loaded from the YAML file "config/02/config.yml"
### Example 3
#### config/03/config.yml
```yml
---
proxy_mode: Automatic proxy configuration URL
auto: https://auto.proxy.net/wpad.dat
```
#### Output
```shell
rougail -m firefox/ -u yaml -yf config/03/config.yml
```
╭─────────────────────────── Caption ────────────────────────────╮
│ Undocumented but modified variable Modified value │
│ (⏳ Original default value) │
╰────────────────────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: Automatic proxy configuration URL
┃ ◀ loaded from the YAML file "config/03/config.yml" (⏳ No proxy)
┣━━ 📓 Automatic proxy configuration URL: https://auto.proxy.net/wpad.dat ◀
┃ loaded from the YAML file "config/03/config.yml"
┗━━ 📓 Address for which proxy will be desactivated:
